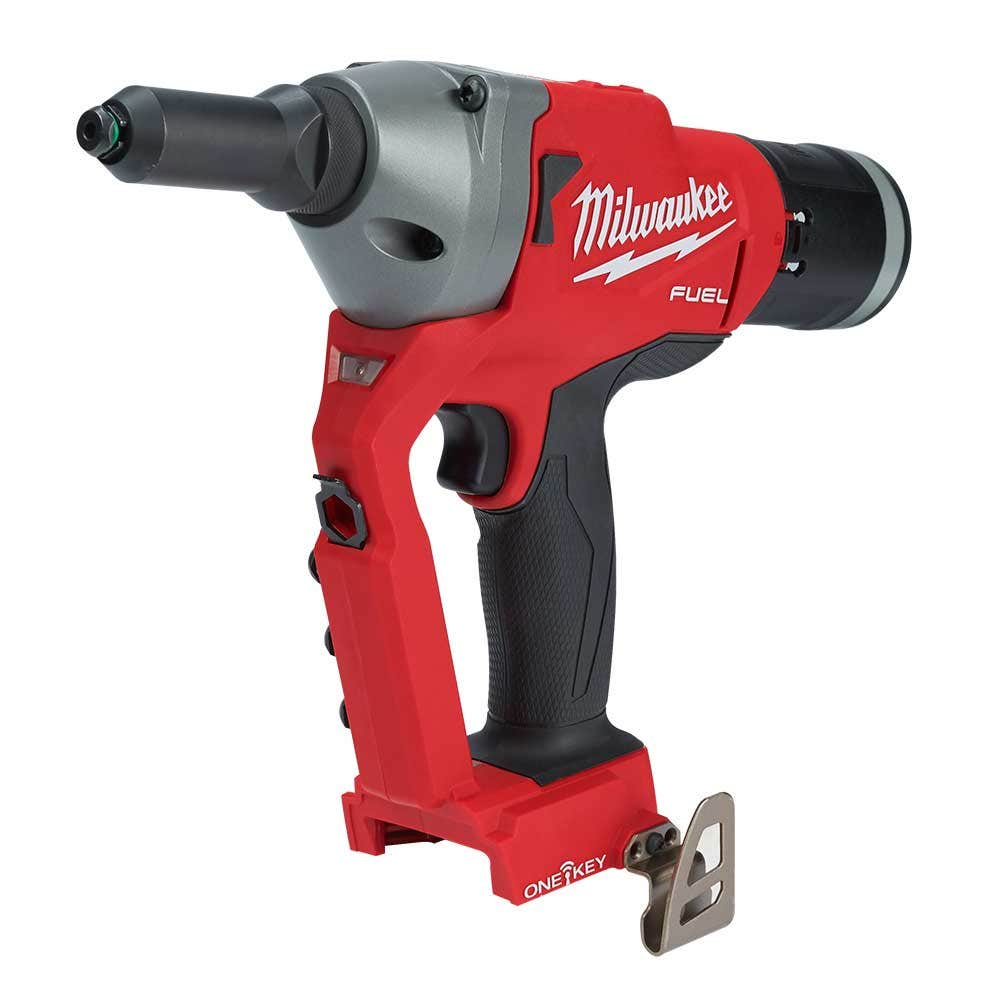

The M18 FUEL™ 1/4" Rivet Tool with ONE-KEY™ delivers fast cordless riveting. It eliminates the need for hoses and compressors while delivering maximum life. This rivet gun significantly increases productivity and portability and ensures a higher level of safety. The premium steel alloy 3-jaw design delivers more work between jaw changes. While lightweight, the M18 FUEL™ 1/4" Rivet Tool with ONE-KEY™ has been designed to withstand harsh shop or assembly plant environments. Manufactured with an all-metal gearcase, impact strength plastics, and protective over-mould the tool is designed for maximum durability. The POWERSTATE™ Brushless Motor delivers 2,041 kg of pulling force for high strength blind rivets in all materials. This rivet tool pulls up to 900 3/16” (4.76 mm) aluminium or 500 1/4” (6.35 mm) aluminium blind rivets on one charge with an M18™ REDLITHIUM™-ION 2.0Ah battery (not included). REDLINK™ PLUS Intelligence ensures maximum performance and protects the tool and battery against overloads, over-heating, and over-discharge. With ONE-KEY™ compatibility, the tool allows the user to track and manage the tool within their inventory.

• POWERSTATE™ Brushless Motor delivers 2,041 kg of pulling force for high strength blind rivets in all materials
• Pulls up to 500 1/4" aluminium blind rivets on one REDLITHIUM™-ION 2.0Ah Battery charge
• Strong, durable jaws to survive drops from ladder heights
• REDLINK™ PLUS Intelligence ensures maximum performance and protects the rivet tool and battery against overloads, over-heating, and over-discharge
• Premium steel alloy 3-jaw design for more work between jaw changes
• Eliminates compressors and airlines for a higher level of safety
• Low energy cost and no routine maintenance required
• Premium rubber over-mould withstands corrosive materials and provides increased comfort when in use

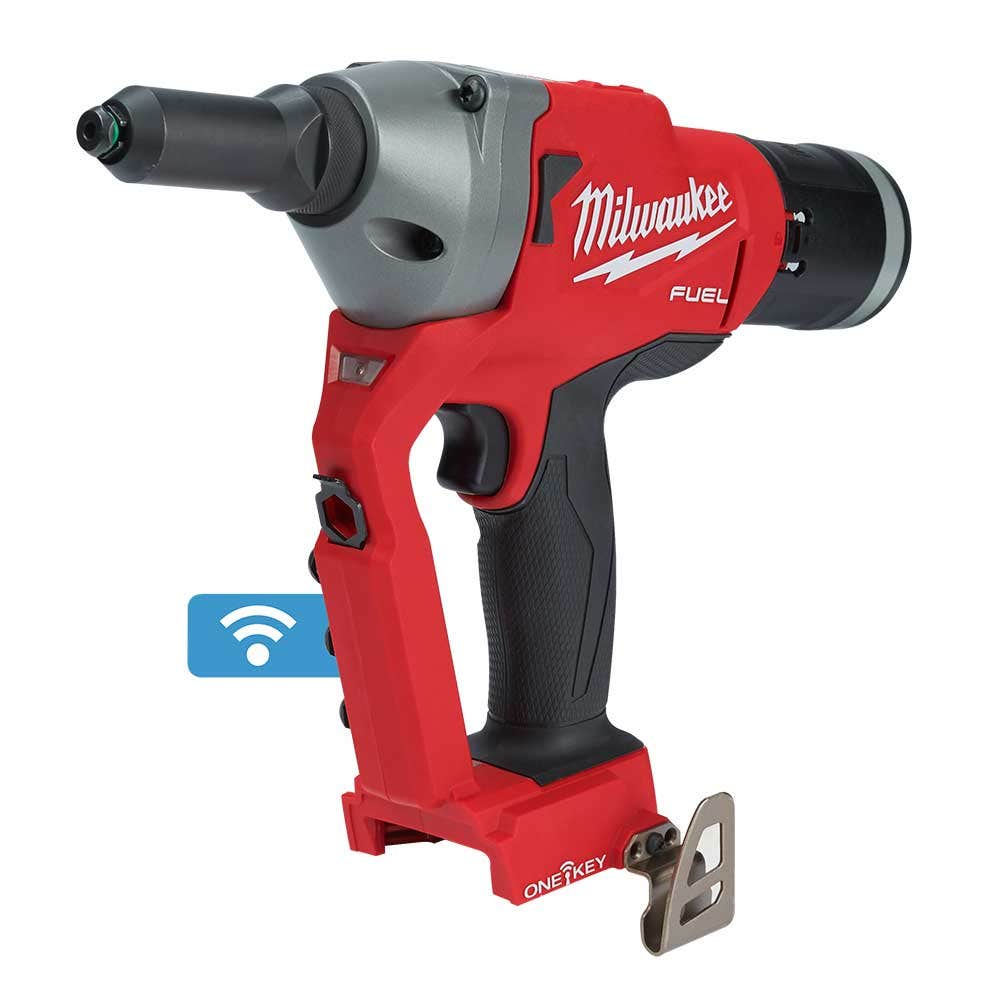

• ONE-KEY™ compatible, with the ability to track and manage tools for increased productivity and investment protection

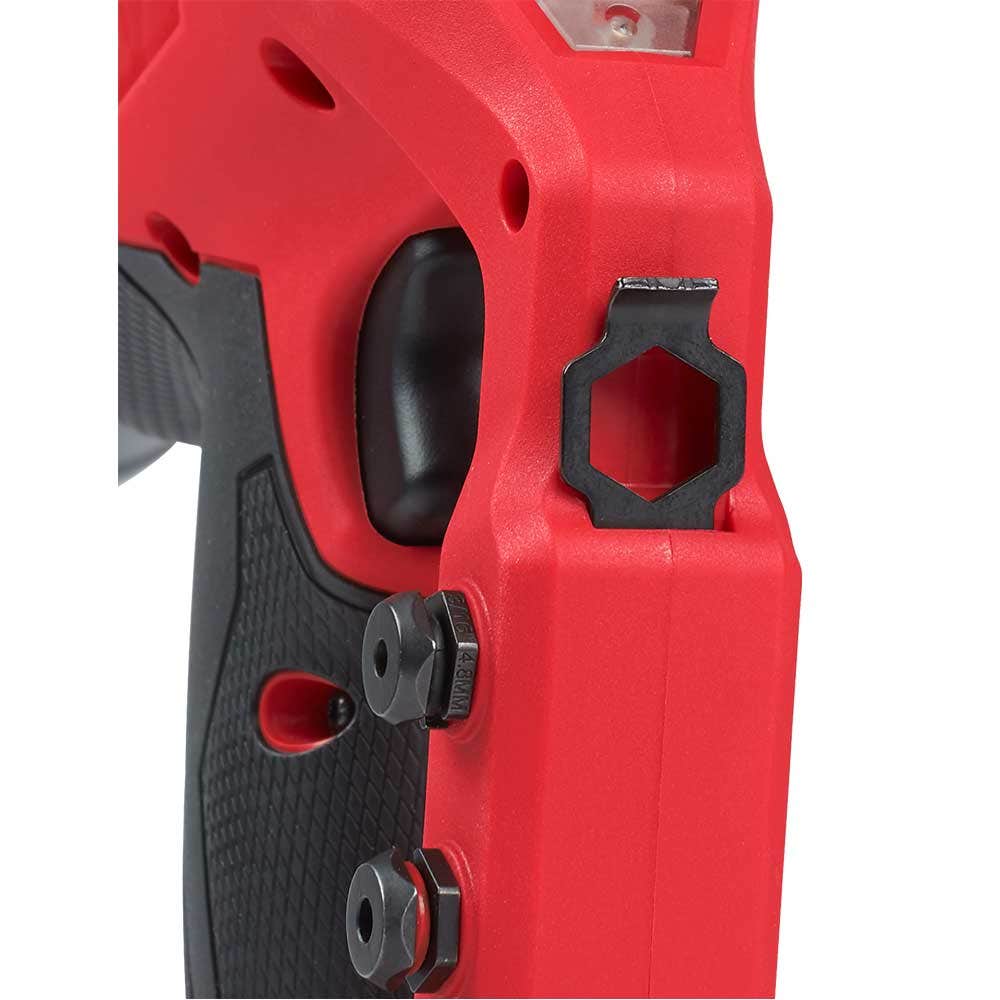

• Tool hanger for reduced user fatigue over extended use

Specifications:

• Rivet Sizes: 3/16", 7/32", 1/4", 9/32" (4.76 mm, 5.56 mm, 6.35 mm, 7.14 mm)
• Rivet Material: Aluminium, Steel, Stainless Steel
• Force: 2,041 kg
• Stroke Length: 30 mm
• Nose Reach: 79.5 mm
• Dimensions: 317.5 x 63.5 x 241 mm with Mandrel Collector
• Dimensions: 267 x 63.5 x 241 mm without Mandrel Collector

*Battery and Charger not included
