Immediate visualisation of temperature differences with smart documentation

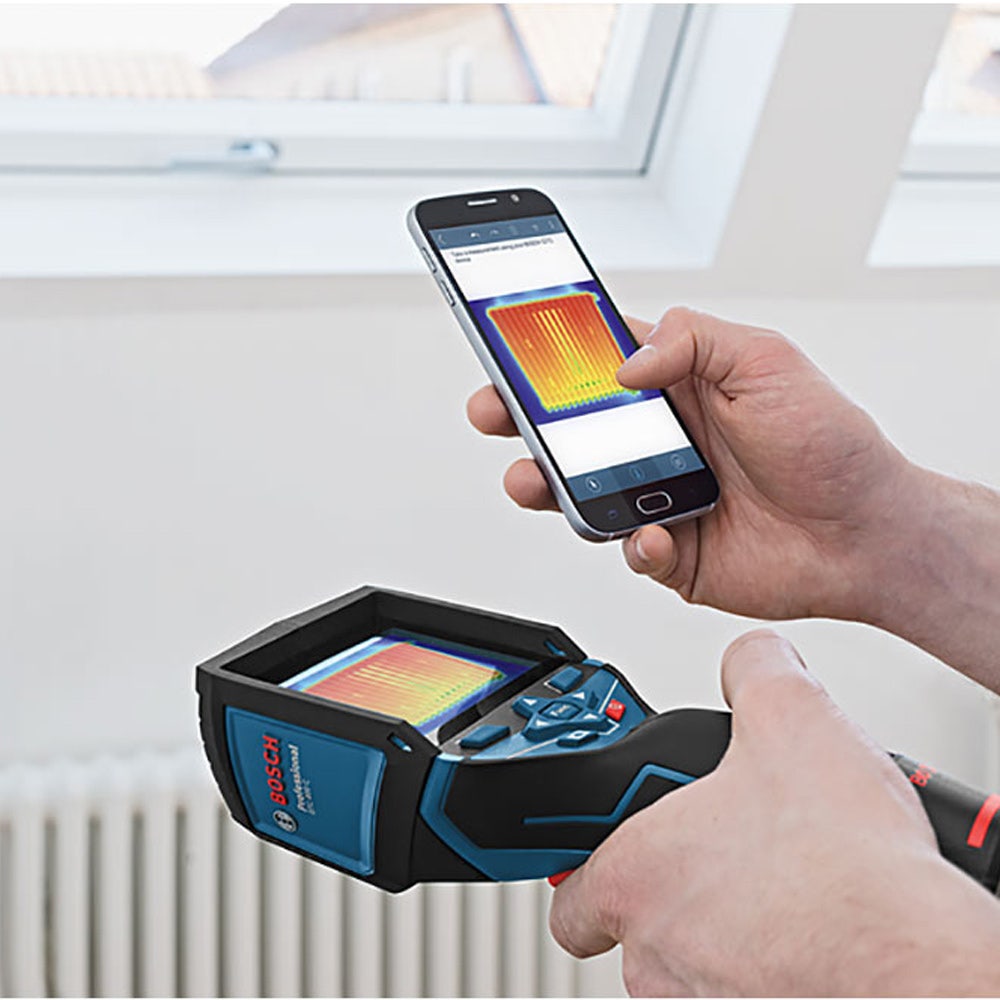

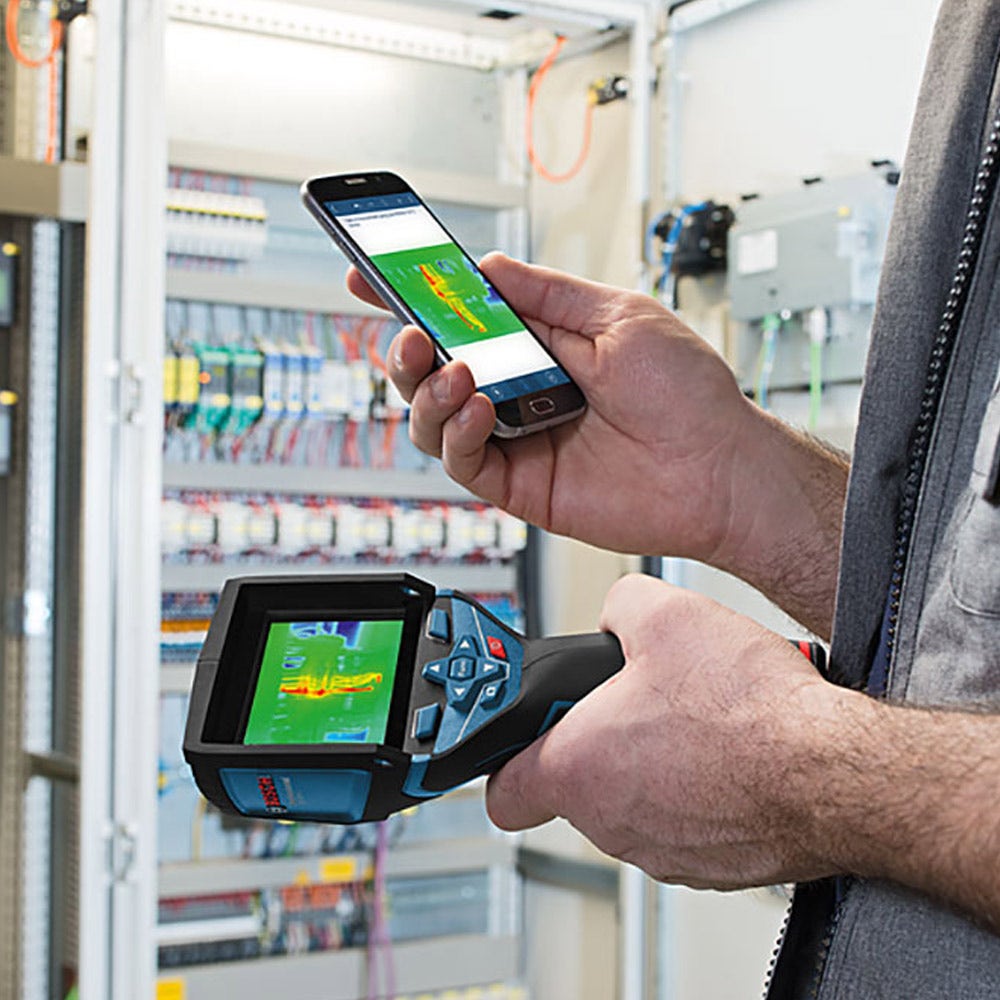

Fast exchange of data and easy documentation of thermal images with the Bosch Measuring Master app

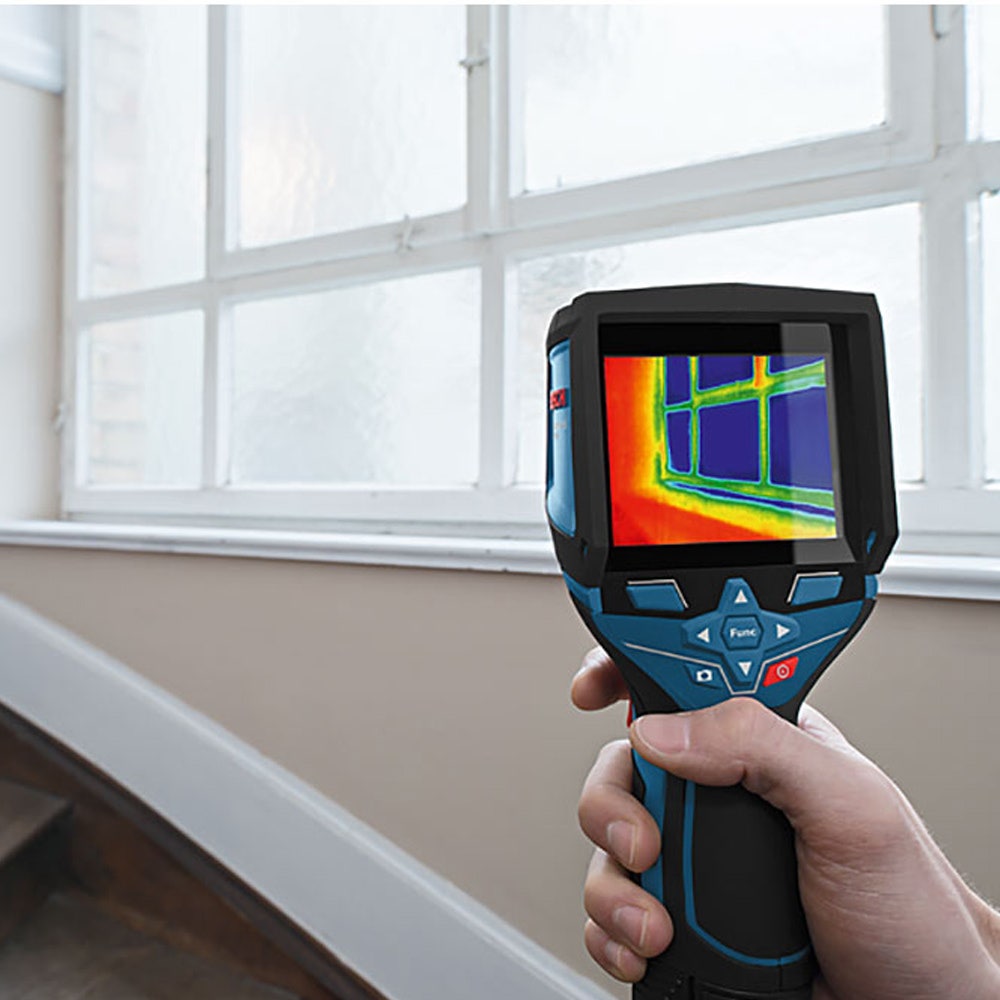

Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement

Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

• Infrared sensor with 19,200 measuring pixels (160 x 120) for detailed, informative thermal imaging
• Easy to use with clear, easy-to-read thermal images for an effortless introduction into the world of thermography

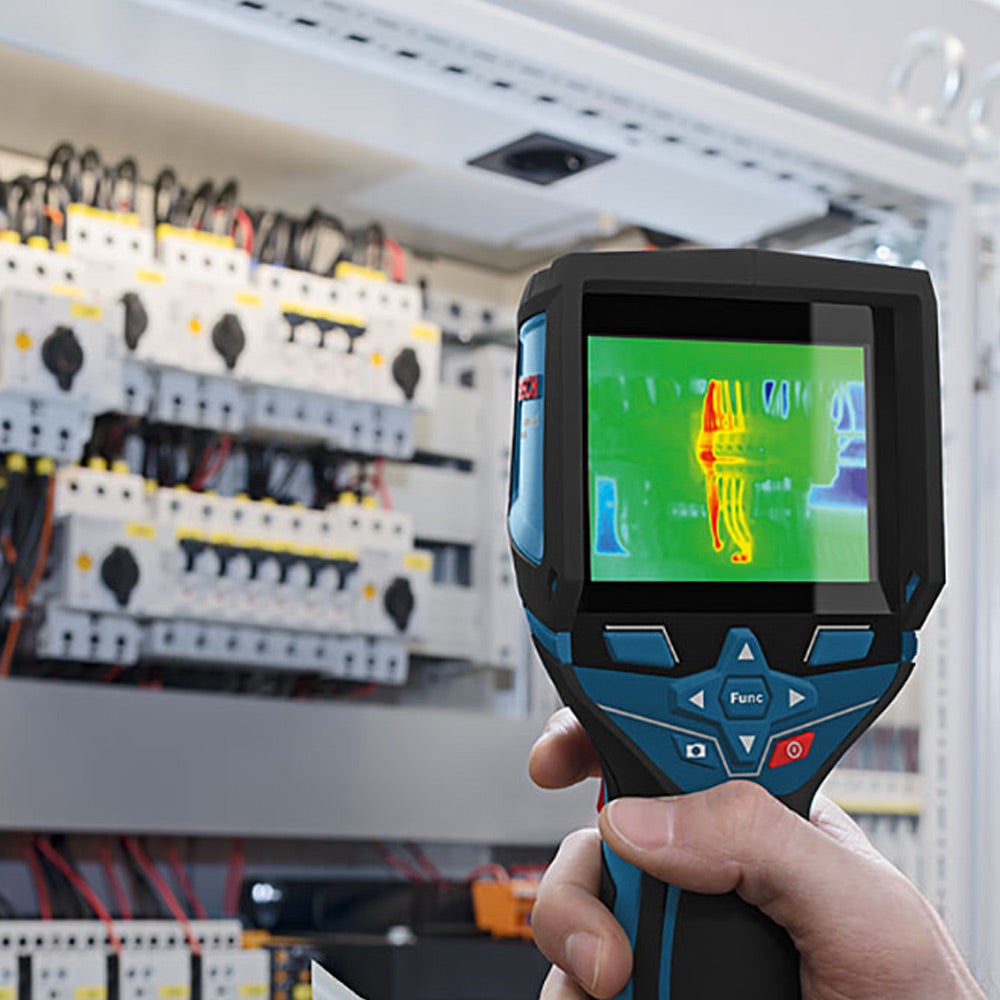

• Identify overheated components in electrical installations immediately – making system testing, inspections and maintenance efficient

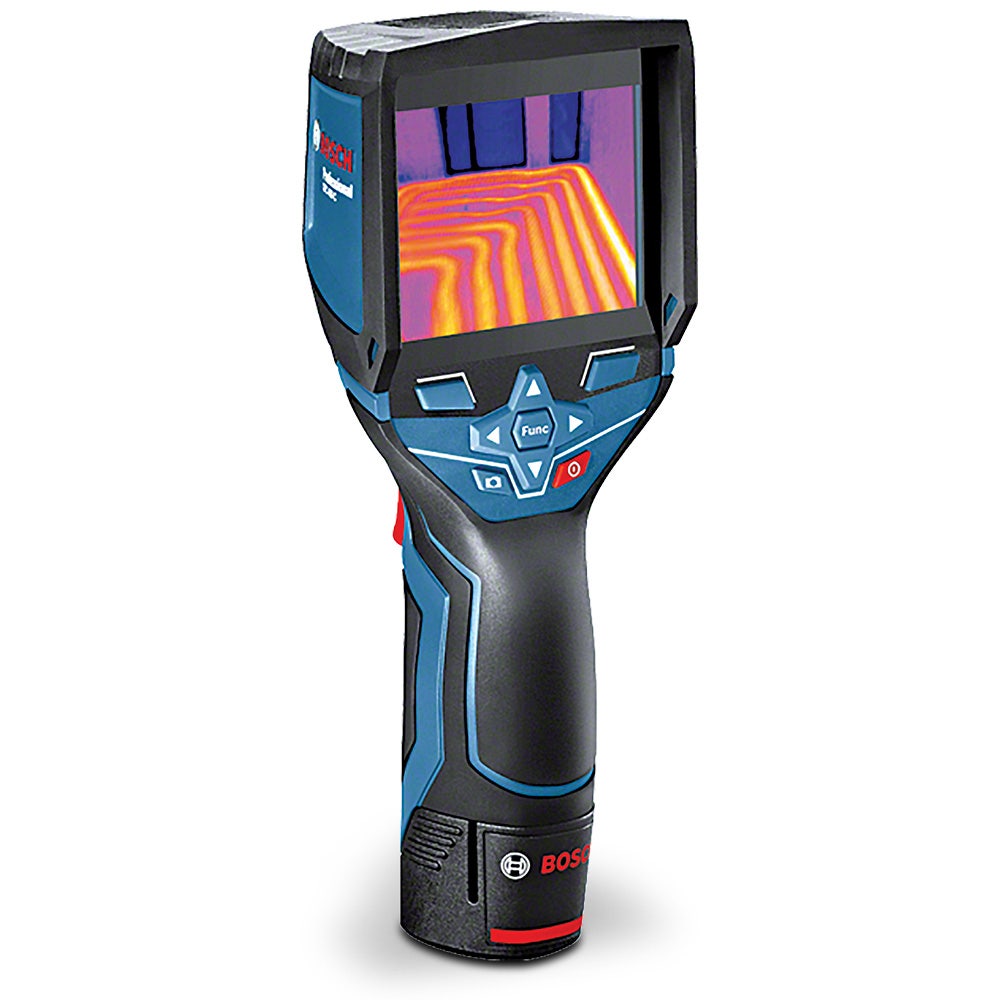

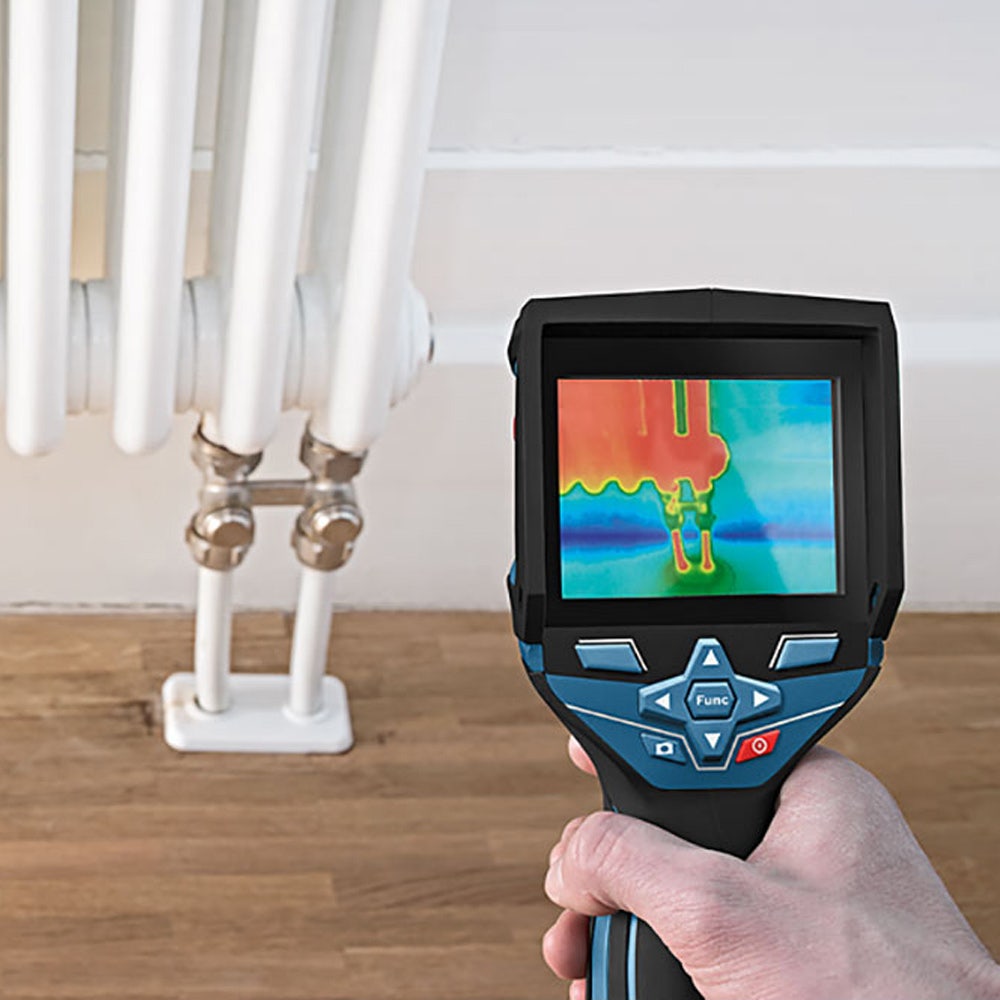

• Locate underfloor heating systems, heating elements and heating pipes easily to check that they are working properly

Specifications:

• Measurement range: -10 °C to +400 °C
• Measuring accuracy of IR: ±3.0 °C
• Optics (Ratio of meas. distance : meas. spot): 0
• Resolution: 0.1 °C
• Thermal sensitivity (NETD): <50 mK
• Size of IR sensor: 160x120 px
• Number of measuring points: 19,200
• Power supply and runtime: 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V
• Frame buffer (number of images): 500
• Memory type: Internal memory
• File format of image: .jpg
• Data transfer: MicroUSB , Wi-Fi
• Dust and splash protection: IP 53
• Supported Android devices: Smartphone with Android 4.3 or higher , Tablet with Android 4.3 or higher
• Supported iOS devices: iPad (3rd Gen. or higher) , iPad Air (1st Gen. or higher) , iPad mini (1st Gen. or higher) , iPhone 4S or higher
• Display type: TFT LCD
• Size of display: 3,5"
• Operating temperature: -10 – 45 °C
• Storage temperature: -20 – 70 °C
