Ideal for alignment, leveling and squaring needs. Bright laser lines can be used in self-leveling mode or locked in manual mode for sloped applications.

• 5 lines + plumb down
• Working range 50m with receiver (optional)
• Accuracy +/-0.2 mm/m

Ideal for alignment, leveling and squaring needs. Bright laser lines can be used in self-leveling mode or locked in manual mode for sloped applications. Bosch GLL 5-50 has a built-in alarm to warn when the device is out of range while in self-leveling mode. BM3 positioning device makes the unit versatile to use: it allows the user to clamp it in place for ceiling grid applications, position on any flat surface or attach it to metal surfaces.

Includes:

• Turning Base
• Protactive Case
• Laser Target
• 4 x AA 1.5V Batteries
• Features:
• A versatile range of applications due to complete solution of multi line laser and mini tripod
• Ruggedness for professional deployment and other outstanding technical specifications
• Compact shape and easy operation
• Rotatable mini tripod simplifies stepless fine positioning of the laser lines
• Height-adjustable telescopic feet enable ergonomic operation
• Levelling set together with an L-BOXX for systematic storage and simplified transport

Specifications:

• Laser diode: 635nm, < 1mW
• Operating temperature: -10°C – 40°C
• Storage temperature: -20°C – 70°C
• Laser class: 2
• Working range:
• with receiver: 50m
• without receiver: 10m
• Levelling accuracy: ± 0.3mm/m
• Working range of laser points: 5m (bottom)
• Self-levelling range: ± 4°
• Levelling time: 4s
• Dust and splash protection: IP 54
• Power supply: 4 x 1.5V LR6 (AA)
• Operating time, max: 18h in 1-line mode

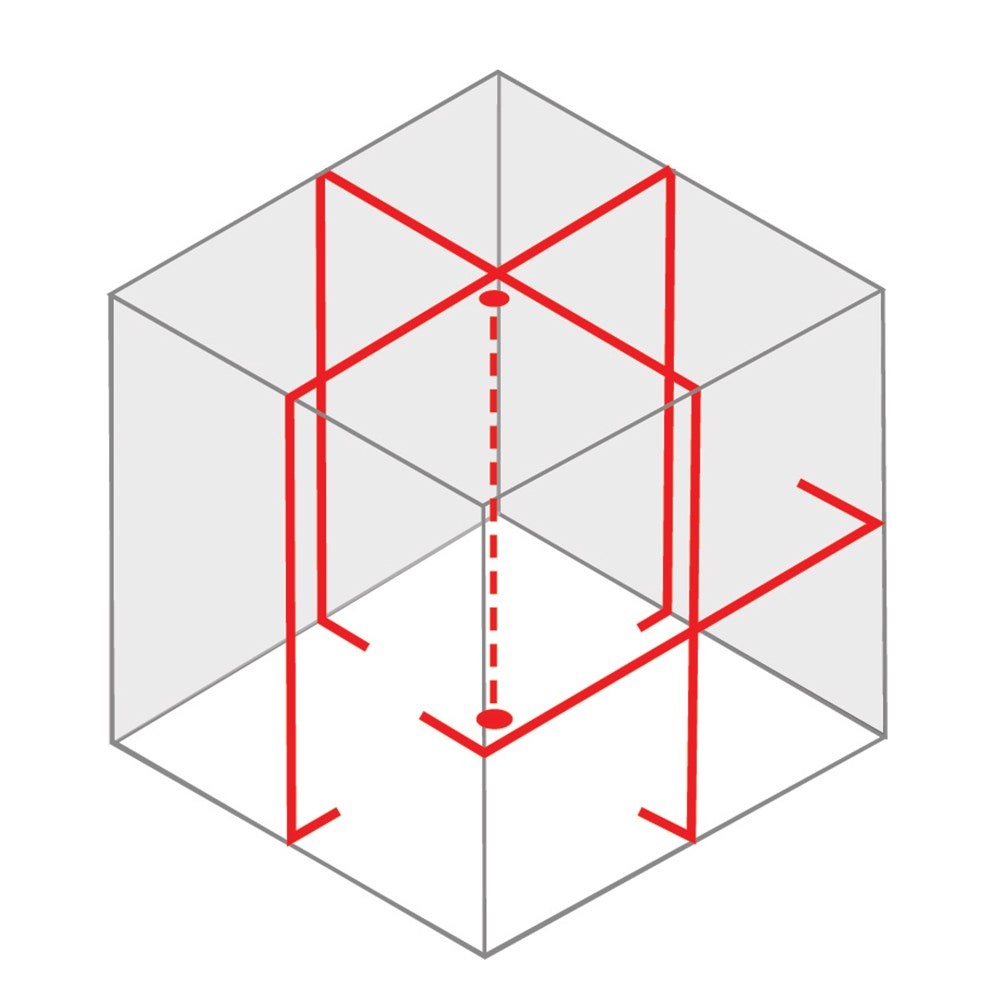

• Projection: 5 lines
• Plumb point accuracy: ± 0.6mm/m
• Dimensions (LxWxH): 146mm x 83mm x 117 mm
• Weight: 1kg
