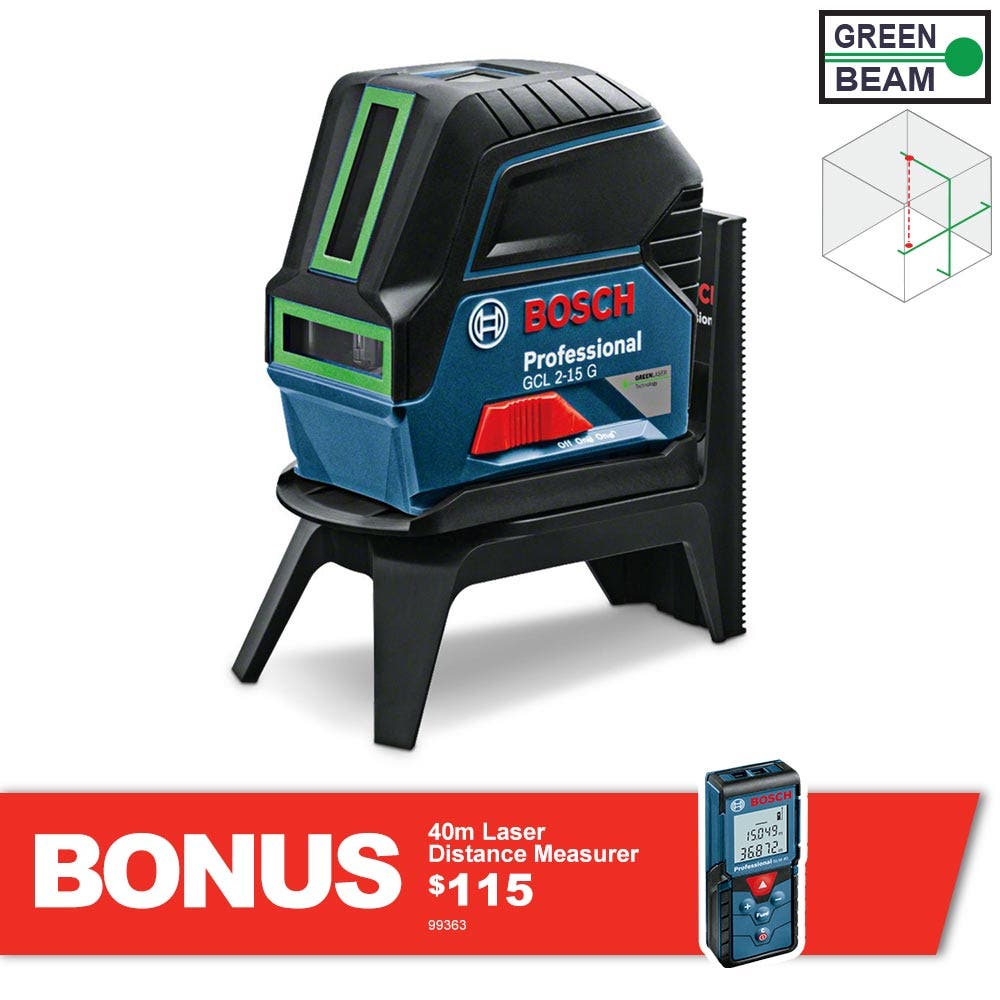

The Bosch GCL2-15G features green beam technology which offers users four times better visibility.

Features

• Green Beams offering 4 x better visibility
• Horizontal and Vertical lines (cross-line)
• Plumb Dots (Red Beam) up & down
• Multifunctional rotating base/mount

Specifications

Measurement Specifications

• Operating Range (without Receiver): 15m
• Operating Range (with Receiver):
• Operating Range (Plumb Points) max. 10m (top), 10m (bottom)
• Accuracy (Lines): ± 0.3mm/m
• Accuracy (Plumb Points): ± 0.7mm/m
• Self-Levelling Range: ± 4 degrees
• Levelling Time: 4 seconds

Laser Specifications

• Laser Colour: Green (Lines) and Red (Plumb Points)
• Laser Class: 2
• Laser Diode:
• Lines: 500-540nm, <10mW
• Points: 630-650nm, <1mW

Other Specifications:

• IP Rating: IP54 (dust and splash protection)
• Power Supply: 3 x 1.5V (AA)
• Tripod Thread: 1/4" & 5/8"
• Weight: 0.49 kg

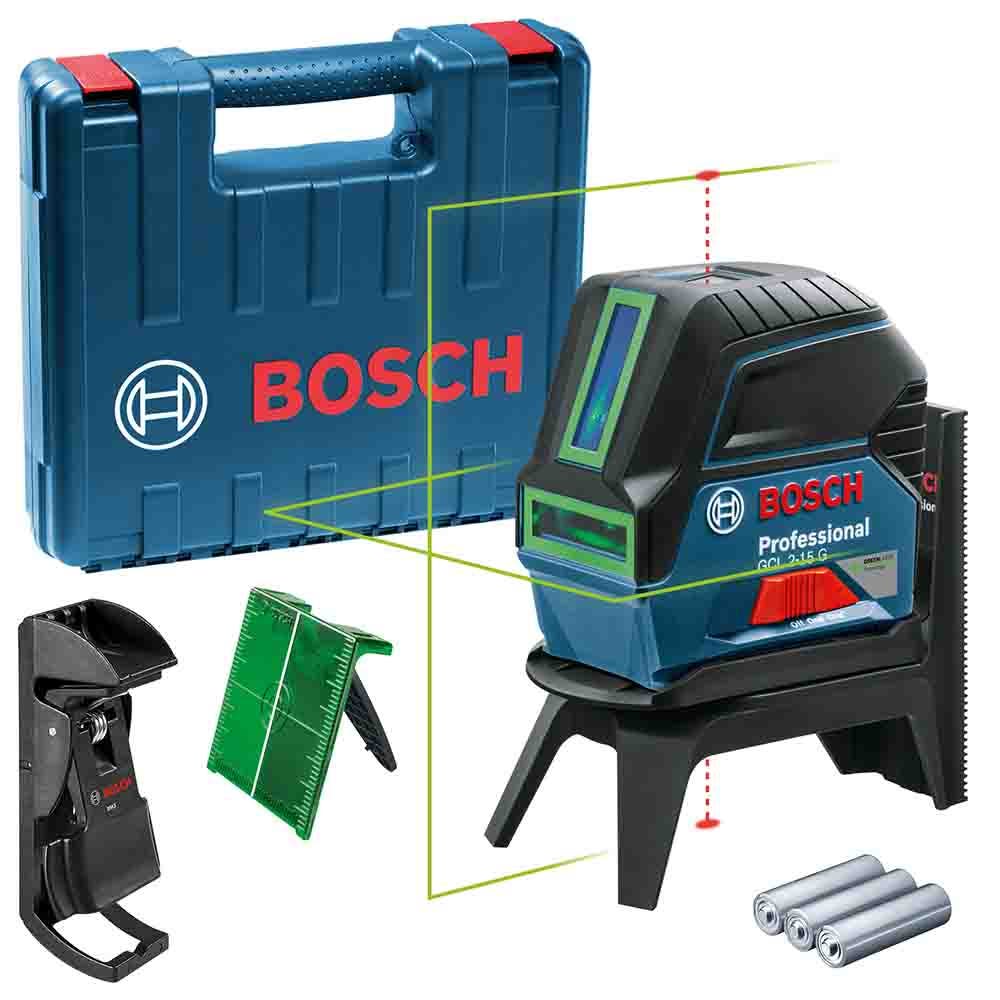

Includes

• GCL2-15G Cross-Line Laser Level
• Laser Target Plate
• 3 x 1.5V (AA) Alkaline Batteries
• User Manual
• Carry Case
