Whether it's the feature packed and user friendly interface, the colour backlit display or Bluetooth® technology that's compatible with the free Bosch app (MeasureOn), the Bosch GLM50C is a laser measure that's ready for anything.

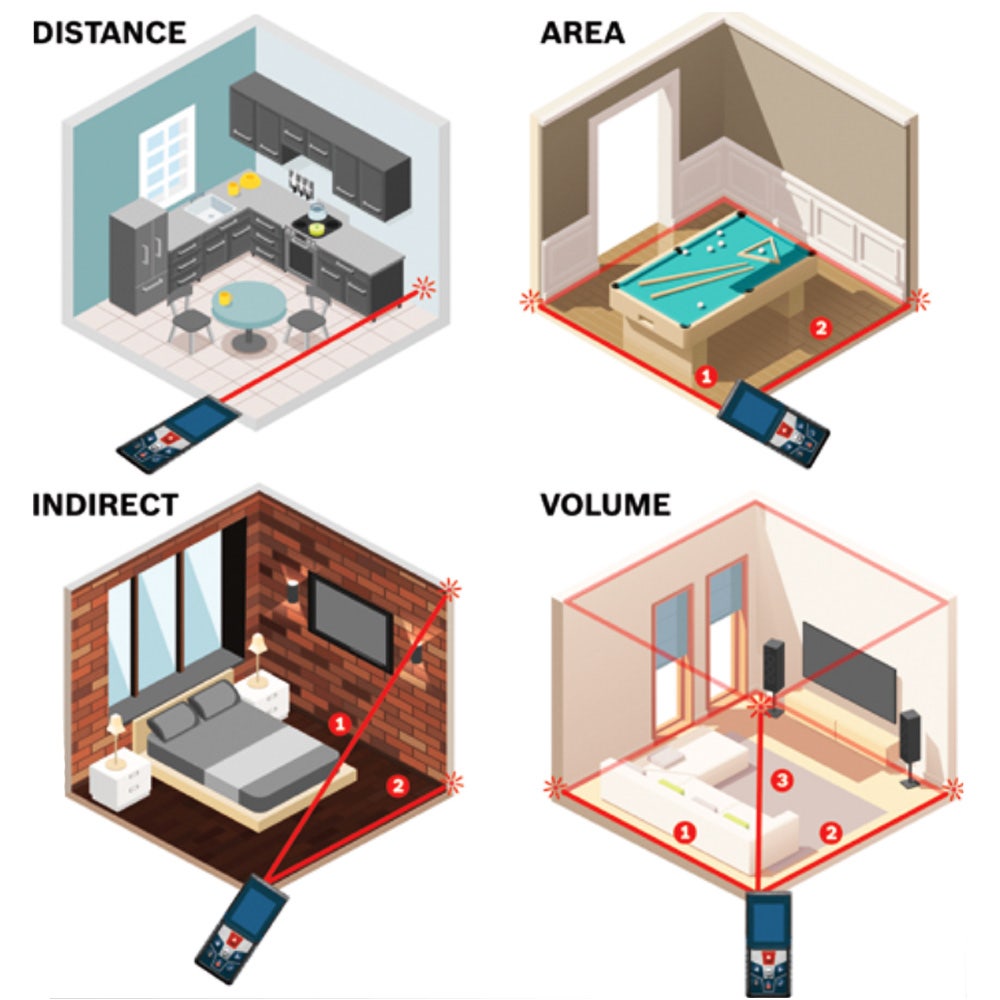

The GLM50C packs a lot of functions, including the basics of distance; length, continuous (real-time) measurement, indirect length (pythagoras) as well as area and volume.

The GLM50C features an all-around soft grip which ensures the device is not only comfortable to hold, but also protects it from damage in case of accidental falls.

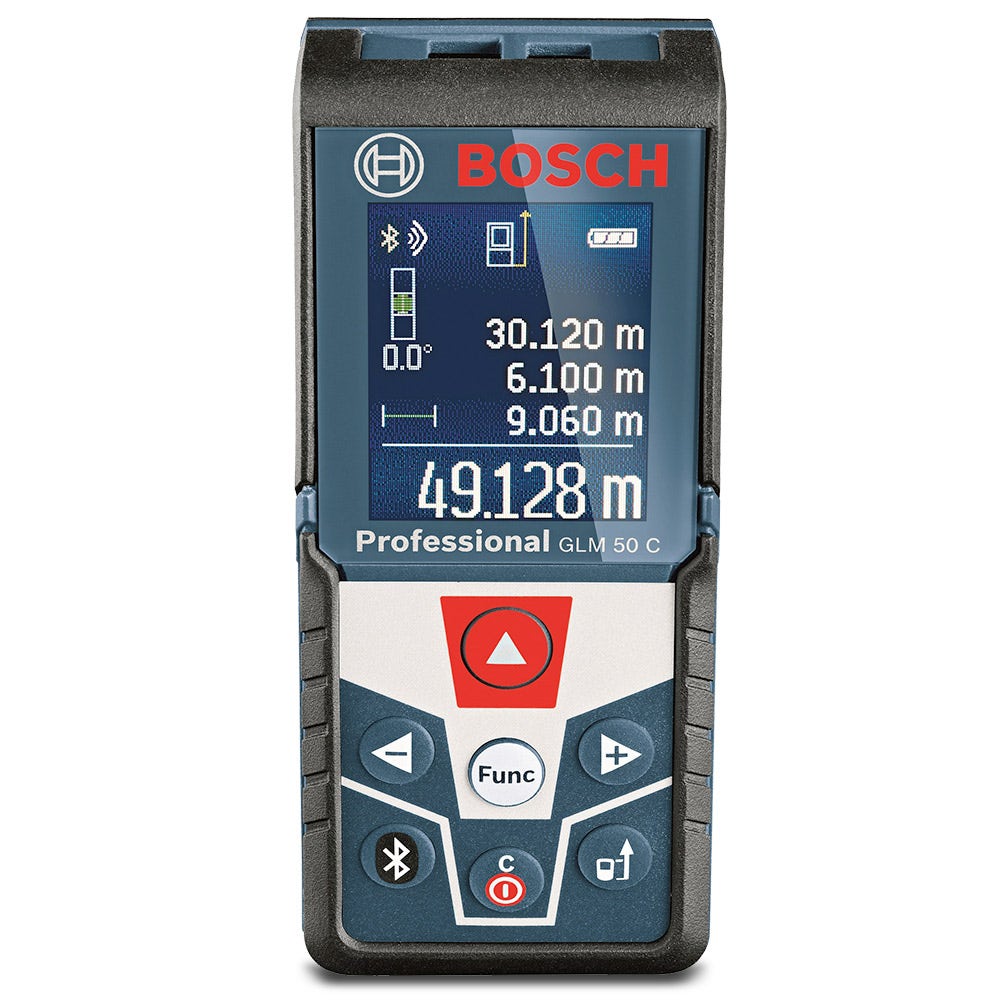

The GLM50C's  easy-to-use keypad interface ensures quick operation and the illuminated display provides enhanced readability of measurements even in low light.

Features

• Fast and efficient data transfer via Bluetooth®
• Simple exchange and smart documentation of measured values thanks to GLM measure & document app
• Use the GLM floor plan app to create digital floor plans, import and edit existing floor plans, and export the result
• Additional functionality due to integrated 360° incline sensor
• Automatic storage of the last 50 measured values and one constant
• Precise and easy to operate due to illuminated display which flips automatically depending on the orientation of the instrument

Specifications

Measurement Specifications

• Measurement Accuracy (Typical): ± 1.5mm (ISO 16331-1 certified typical measuring accuracy)
• Measurement Range: 0.05 - 50m
• Measurement Range of Incline Measurement: 0-360° (4 x 90°)
• Measuring Accuracy (Typical): +/- 0.2°
• Measurement Time (Typical): < 0.5 seconds
• Measurement Time (Maximum): 4 seconds
• Measurement Memory Settings: Last 30 displays
• Units of Measure: m/cm

Laser Specification

• Laser Diode: 635 nm, < 1 mW

Other Specifications

• IP Rating: IP54
• Power Supply: 2 x 1.5V (AAA)
• Measurements per set of Batteries: up to 10,000
• Battery Lifetime (operating time): 2.5 hours (approx.)
• Automatic Deactivation: 5 minutes
• Tripod Thread: 1/4"
• Weight: 0.1kg

Bluetooth & Data Specifications

• Data Transfer
• iOS devices with Bluetooth® Smart technology
• Android devices with Bluetooth® 2.1 or higher
• Supported iOS Devices
• iPhone 4S or higher
• iPad 3rd Generation or higher
• iPad Mini 1st Generation or higher
• Supported Android Devices:
• Smartphone with Android 4.3 or higher
• Tablet with Android 4.3 or higher

Includes

• GLM50C Laser Distance Measurer
• 2 x 1.5V (AAA) Alkaline Batteries
• Nylon Storage Pouch
• User Manual
• App - Available on Apple Store or Google Play
